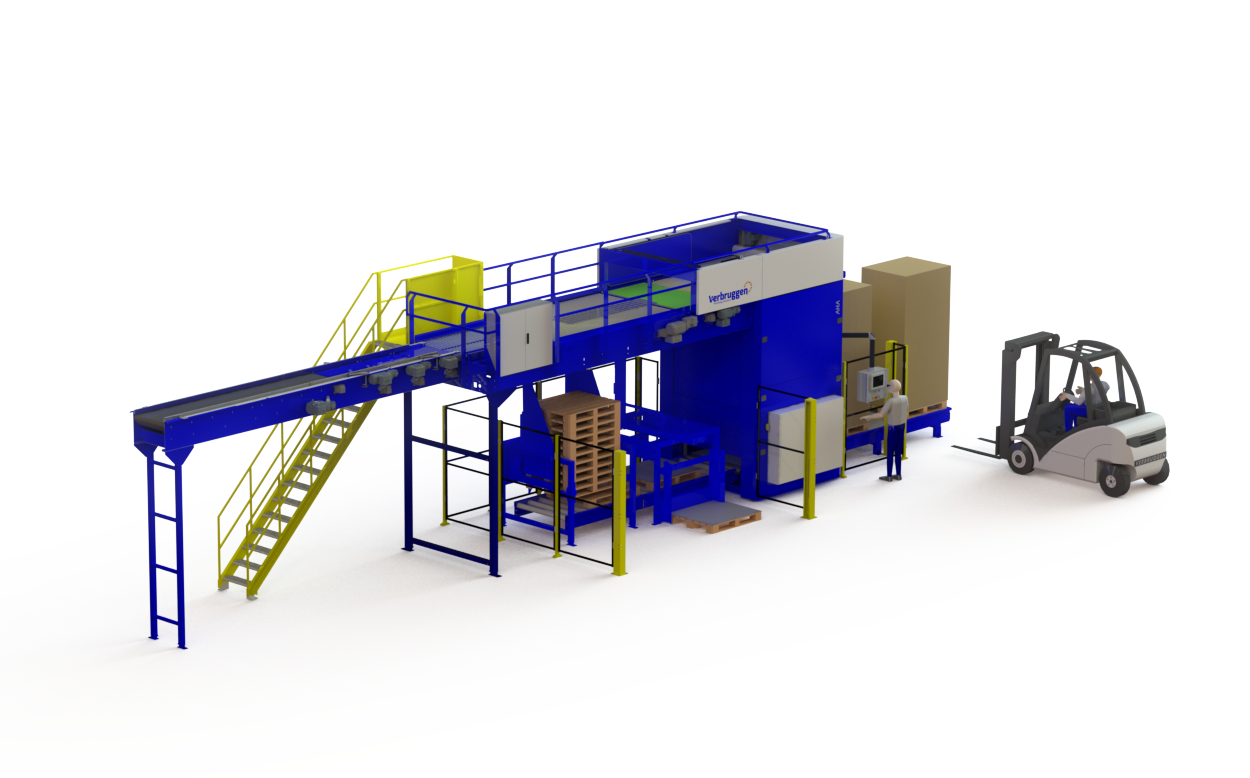

VPM-VHV – Ultra-Quick Box Palletizer

The VPM-VHV is a gamechanger in box palletizing, offering a handling speed of up to 80 boxes a minute. Operating according to the sliding principle, the machine optimizes singulating, turning and formation within the product flow. The VPM-VHV is equipped with an electric pallet lift as standard and optional automatic interlayer sheet dispenser, delivering precise, reliable results at unparalleled speed.

Products are fed in by the stable conveyors with automatic product buffering. The VPM-ACP’s turn unit and flybar positions products in layers quickly and accurately, after which the horizontal formation doors place every layer precisely on the pallet. The four-sided, closed collar ensures every stack has a flawless finish. The machine includes a user-friendly touchscreen and intelligent software. With remote access technology, our service team can provide immediate support from anywhere.

Specifications

Model Features

Touch screen with user-friendly interface

Easy configurable stacking patterns

Remote access module

High infeed level

Low infeed level

Automatic stack / support transport

Vertical compression

Entrance protection

Access platform

Specifications

Capacity (max. rate depending on configuration)

5 units per layer

2030 units / hour

10 units per layer

4065 units / hour

Max. layer dimensions (mm)

1350 x 1350

Package

Maximum weight (kg)

25

Minimum dimensions (mm)

200 x 200 x 100

Maximum dimensions (mm)

400 x 600 x 400

Benefits

  • Consistent and stable pallet stacks
  • Ultra-quick stacking capability
  • Low power consumption
  • Efficient and low maintenance
  • High return and short ROI

Popular options and add-ons

  • Adjustable formation collar for multiple pallet dimensions
  • Integrated sheet and interlayer dispenser
  • Empty pallet dispenser
  • Slip sheet / nail guard dispenser for push-pull attachments
  • Driven roller conveyors

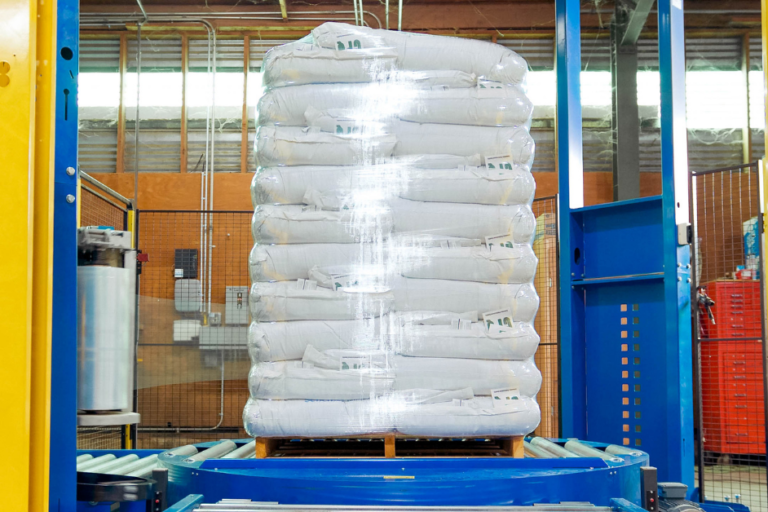

  • Fully integrated automatic wrapping machine
  • Fully automatic product buffer system
  • 100% electric design
