Palletizer
VPM-7

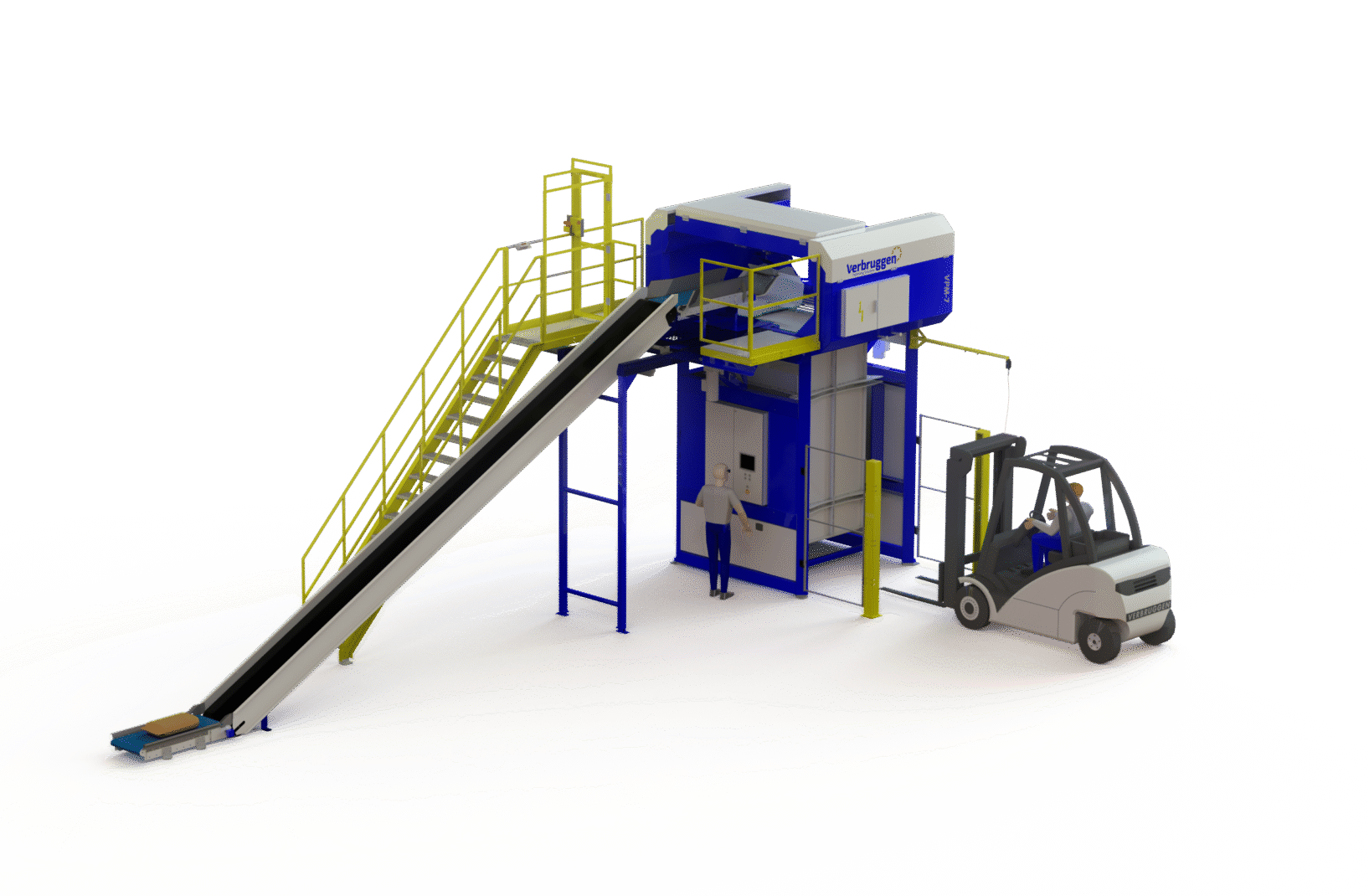

VPM-7 – Precision and Versatility for Medium-Sized Packers
The VPM-7 is designed for medium-sized packers who require precision and versatility. The four-sided, closed stacking chamber interlocks every layer, creating a uniform and stable stack. The VPM-7 has fully automatic controls and is capable of processing bags from 2.5 to 50 kilograms, eliminating the need for manual stacking.

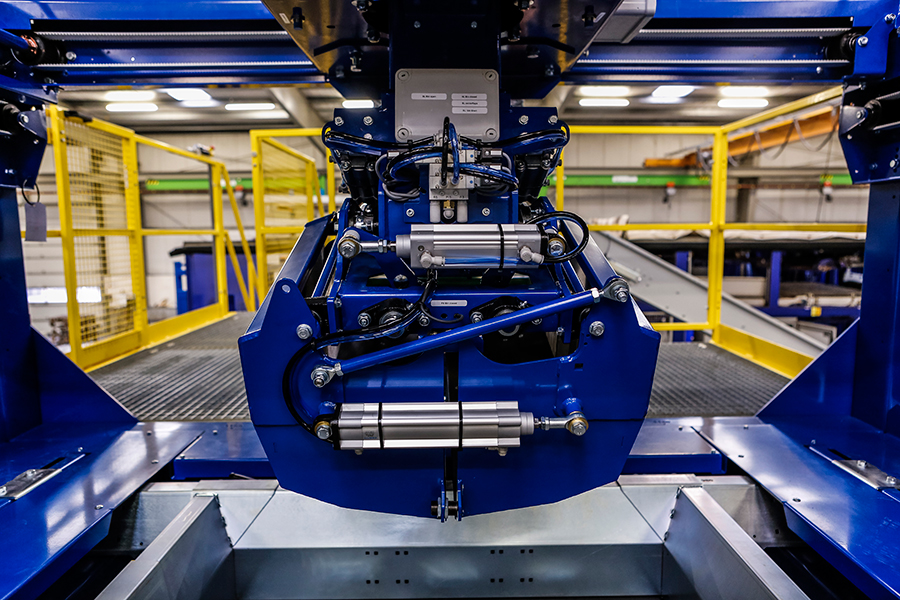

Products are fed in by stable conveyors with automatic product buffering to ensure a constant flow. Inside, a high-precision manipulator with centering flaps and formation doors positions each layer exactly. The machine includes a user-friendly touchscreen and intelligent software. With remote access technology, our service team can provide immediate support from anywhere.
Specifications
| Model Features | |
|
Touch screen with user-friendly interface |
|
|
Easy configurable stacking patterns |
|
|
Remote access |
|
|
High infeed level |
|
|
Low infeed level |
|
|
Automatic stack / support transport |
|
|
Vertical compression |
|
|
4-sided stack enclosure |
|
|
Entrance protection |
|
|
Access platform |
|
| Specifications | |
|
Capacity (max. rate depending on configuration) |
|
|
5 units per layer |
920 units / hour |
|
13 units per layer |
975 units / hour |
|
Max. layer dimensions (mm) |
1600 x 1250 |
|
Package |
|
|
Maximum weight (kg) |
50 |
|
Minimum dimensions (mm)*1 |
350 x 220 x 50 |
|
Maximum dimensions (mm) |
880 x 590 x 325 |
Benefits
- Consistent and stable pallet stacks
- Relatively space-efficient
- Low power consumption
- Efficient and low maintenance
- High return and short ROI
Popular options and add-ons
- Customizable stacking chamber and formation collar for multiple pallet dimensions
- Soft landing on horizontal formation doors
- Electrically adjustable formation collar
- Integrated sheet and interlayer dispenser
- Combi manipulator for bags, boxes, and crates
- Larger manipulator for bags up to 50 kg
- Stand-alone wrapper
- External start for new pallet
