• Palletizer

    VPM-10

VPM-10 – Top Speed and Maximum Capacity

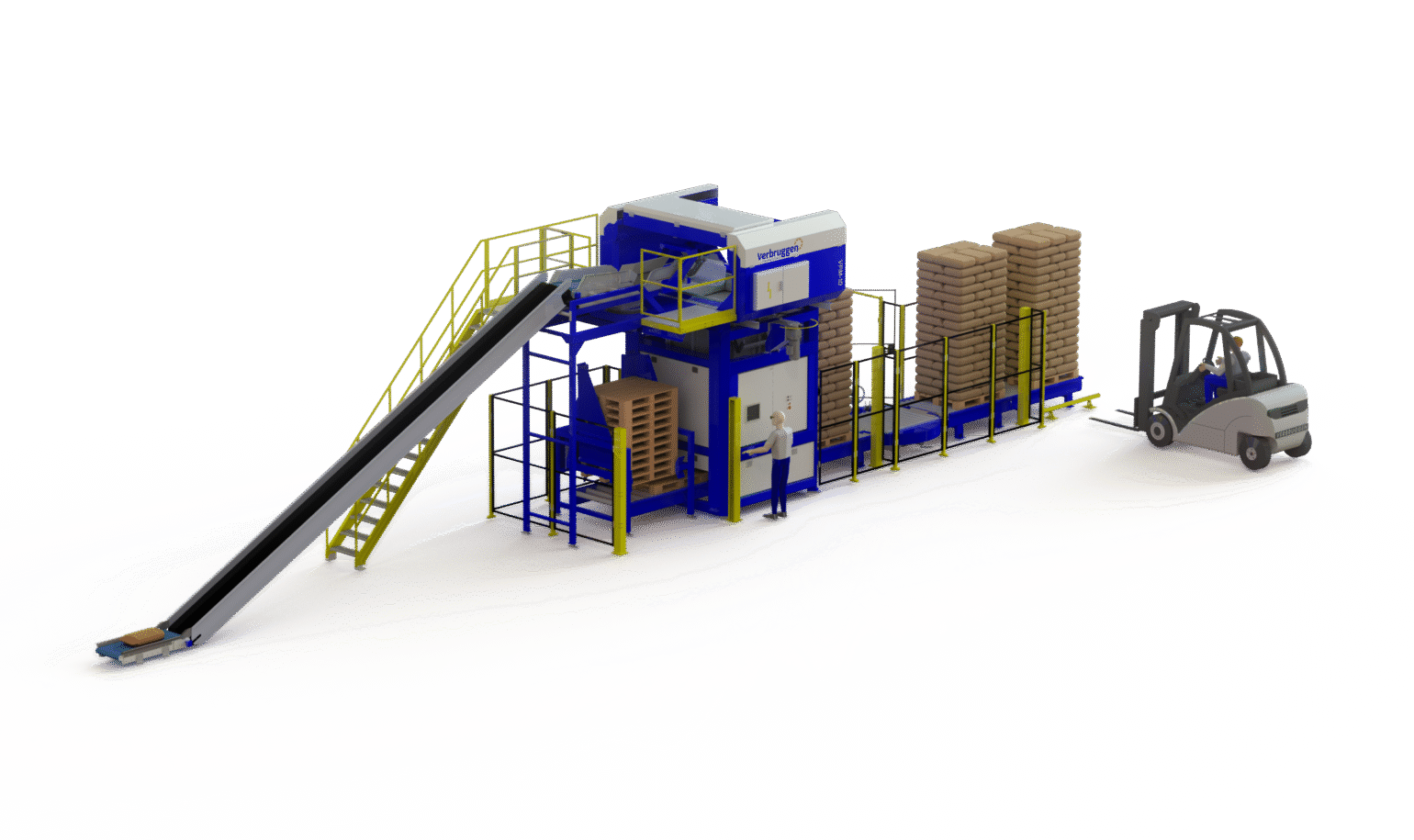

The VPM-10 is specially designed for large-scale packers who require a high-speed, fully automated palletizing solution. Equipped with a pallet dispenser, roller conveyor and inspection platform as standard, this machine can process large volumes while delivering consistent precision. Thanks to its advanced technology, the fully automatic VPM-10 makes short work of product stacks – no manual stacking required.

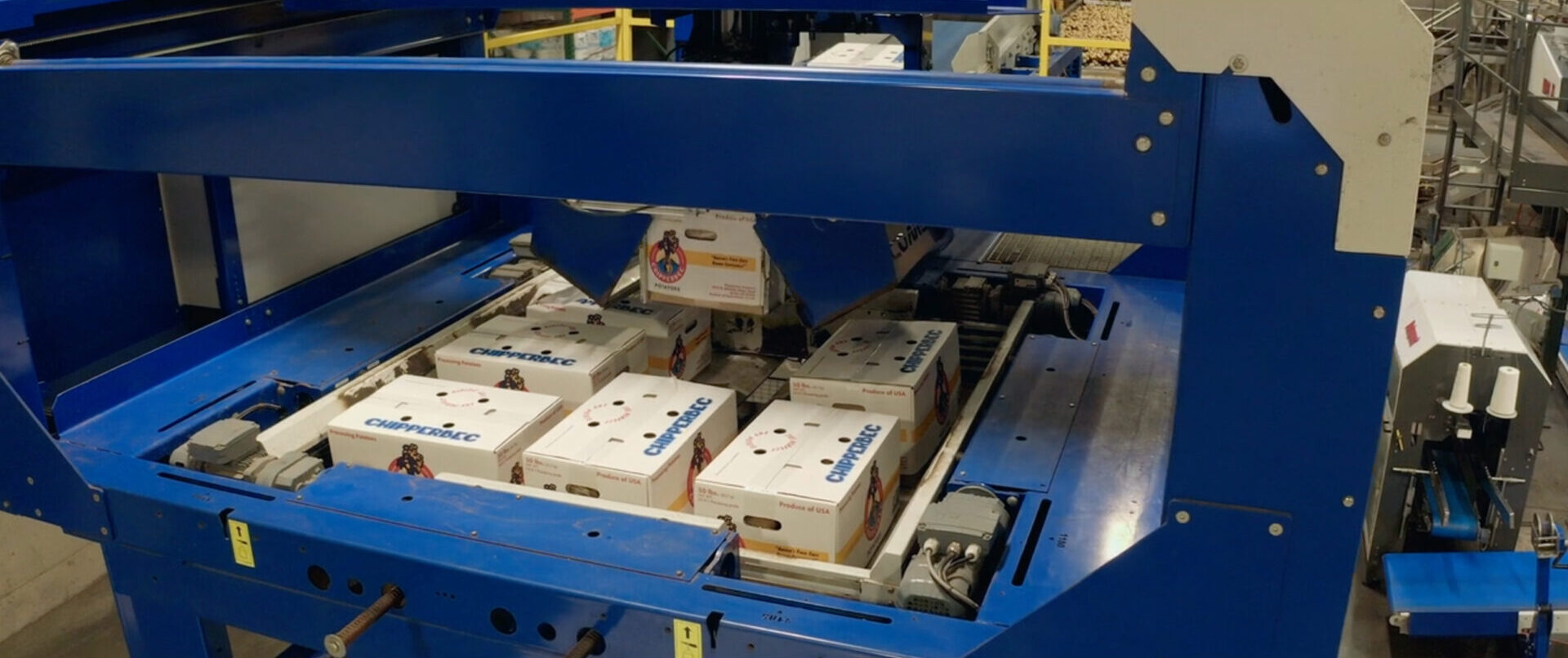

Products are fed in by the stable conveyors with automatic product buffering. Once the manipulator with centering flaps places products precisely where they need to be, the horizontal formation doors compress them into a stable stack. While the machine finishes one layer, it begins forming the next interlocking layerto rapidly create flawless, consistent stacks – time and time again. The machine includes a user-friendly touchscreen and intelligent software. With remote access technology, our service team can provide immediate support from anywhere.

Specifications

Model Features

Touch screen with user-friendly interface

Easy configurable stacking patterns

Remote access

High infeed level

Low infeed level

Automatic stack / support transport

Vertical compression

4-sided stack enclosure

Entrance protection

Access platform

Specifications

Capacity (max. rate depending on configuration)

5 units per layer

1310 units / hour

13 units per layer

1710 units / hour

Max. layer dimensions (mm)

1600 x 1250

Package

Maximum weight (kg)

50

Minimum dimensions (mm)*1

350 x 220 x 50

Maximum dimensions (mm)

880 x 590 x 325

Benefits

  • Consistent and stable pallet stacks
  • Ultra-quick stacking capability
  • Low power consumption
  • Efficient and low maintenance
  • High return and short ROI

Popular options and add-ons

  • Customizable stacking chamber and formation collar for multiple pallet dimensions
  • Soft landing on formation doors
  • Electrically adjustable formation collar
  • Integrated sheet and interlayer dispenser
  • Combi manipulator for bags, boxes, and crates
  • Larger manipulator for bags up to 50 kg
  • Empty pallet dispenser
  • Slip sheet / nail guard dispenser for push-pull attachments
  • Driven roller conveyors
  • Fully integrated automatic wrapping machine
