Palletizer
VPM-8

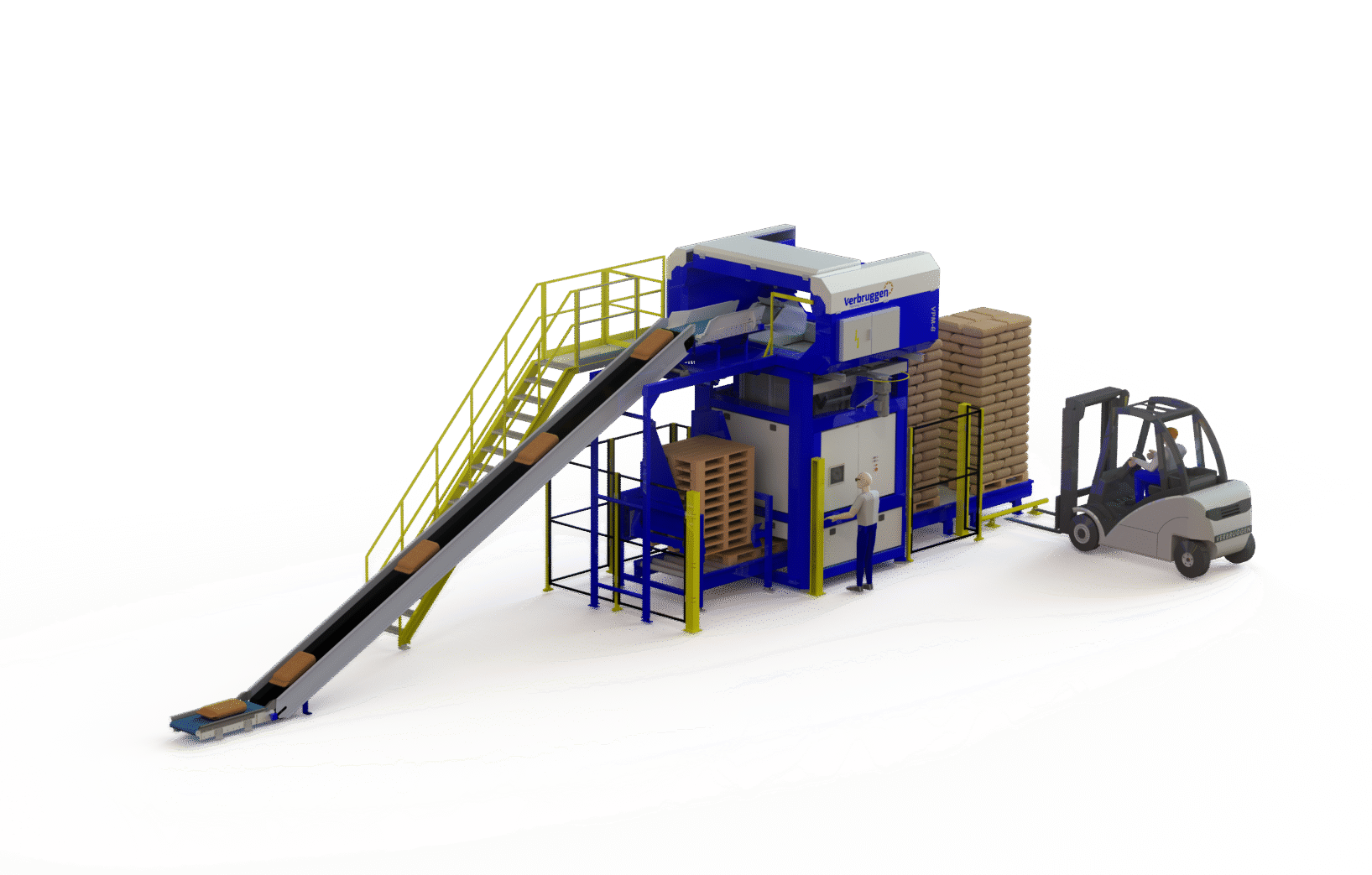

VPM-8 – Quick, Precise and Fully Automatic
The VPM-8 is designed for medium-sized packers who require performance and precision. The machine features an inspection platform and automatic pallet transport system with pallet dispenser, enabling a fully mechanized process from in-feed to end product. Based on the strengths of the VPM-7, the VPM-8 uses advanced technology to stack quickly, consistently, and fully automatically.
Products are fed in by stable conveyors with automatic product buffering to ensure a constant flow. The manipulator with centering flaps and horizontal formation doors produces perfectly formed layers in the four-sided, closed stacking chamber – all while the next layer is being prepared. The machine includes a user-friendly touchscreen and intelligent software. With remote access technology, our service team can provide immediate support from anywhere.
Specifications
| Model features | |
|
Touch screen with user-friendly interface |
|
|
Easy configurable stacking patterns |
|
|
Remote access |
|
|
High infeed level |
|
|
Low infeed level |
|
|
Automatic stack / support transport |
|
|
Vertical compression |
|
|
4-sided stack enclosure |
|
|
Entrance protection |
|
|
Access platform |
|
| Specifications | |
|
Capacity (max. rate depending on configuration) |
|
|
5 units per layer |
970 units / hour |
|
13 units per layer |
1025 units / hour |
|
Max. layer dimensions (mm) |
1600 x 1250 |
|
Package |
|
|
Maximum weight (kg) |
50 |
|
Minimum dimensions (mm)*1 |
350 x 220 x 50 |
|
Maximum dimensions (mm) |
880 x 590 x 325 |
Benefits
- Consistent and stable pallet stacks
- Fast stacking capability
- Low power consumption
- Efficient and low maintenance
- High return and short ROI
Popular options and add-ons
- Customizable stacking chamber and formation collar for multiple pallet dimensions
- Soft landing on formation doors
- Electrically adjustable formation collar
- Integrated sheet and interlayer dispenser
- Combi manipulator for bags, boxes, and crates
- Larger manipulator for bags up to 50 kg
- Empty pallet dispenser
- Slip sheet / nail guard dispenser for push-pull attachments
- Driven roller conveyors
- Fully integrated automatic wrapping machine
